Syscal Monitoring Unit (SMU)

converter

The Syscal monitoring Unit is an automated system designed for the use of the Syscal Pro for monitoring survey.
This unit connects the Rx and Tx batteries to the source of voltage of your choice (solar panel, wind turbine, isolated charger, ethanol fuel cell) when the Syscal is not acquiring. During the acquisition, the source of voltage is disconnected from the Tx and Rx batteries to avoid any leak of current that would perturbate the measurements.

This unit features two programmable systems :

- An independent programmer that must be programmed on site
- A automated system activated by the programmer that can be accessed and programmed remotely from a webpage (4G, Wifi, Ethernet)

With the Syscal Monitoring Unit, change the time of acquisition, upload a sequence to the Syscal Pro from your office. Choose to receive alerts (low Tx battery, too much erroneous measurements, problem to download the data) on a custom email address. Program the automatic uploading of the acquired data on a FTP or SSH server or by email on a custom email address.

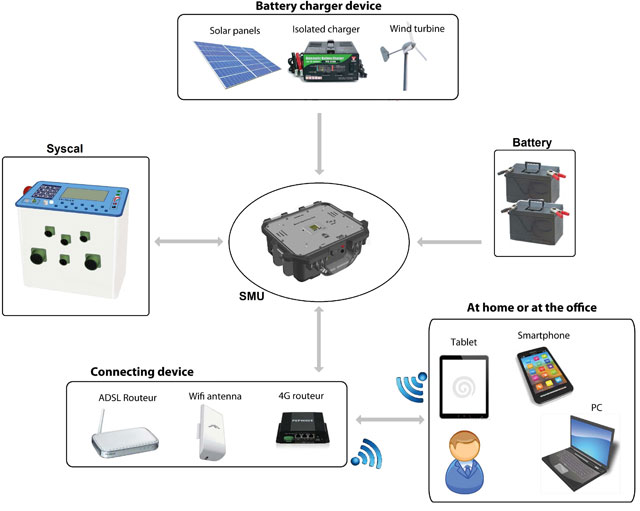

Here is a schematic diagram of how can be used the Syscal Monitoring Unit :
With the Syscal Monitoring Unit, change the time of acquisition, upload a sequence to the Syscal Pro from your office. Choose to receive alerts (low Tx battery, too much erroneous measurements, problem to download the data) on a custom email address. Program the automatic uploading of the acquired data on a FTP or SSH server or by email on a custom email address.

Here is a schematic diagram of how can be used the Syscal Monitoring Unit :

converter

Software

Download
pdf

Prosys II

Resistivity data management

Characteristics

Syscal Monitoring Unit

Voltage for charge:

12 V

Max. current for charge:

10A

Power:

250W DC/DC

Battery:

external 12V

0 - 2500 mA

Current:

Voltage:

0 - 1600 Vpp

weight:

3.4Kg

31x25x15cm weather proof casing

( L x W x H)
