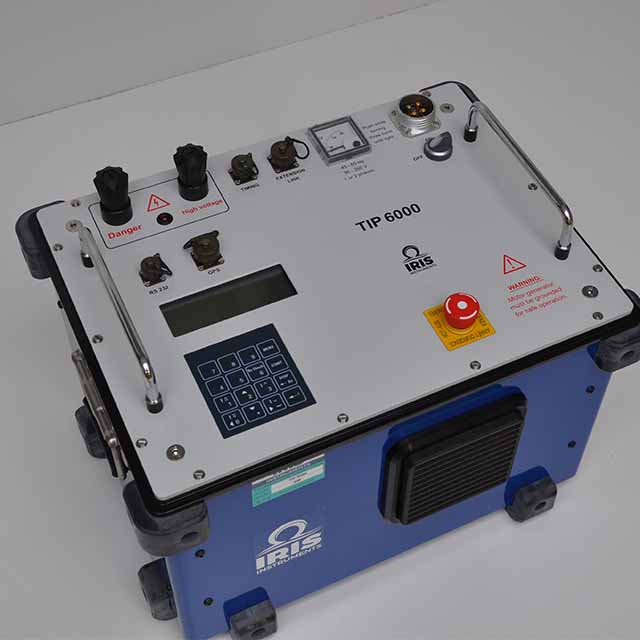

TIP 6000
The TIP 6000 is a newly developped high power transmitter that can be used together with a receiver for resistivity and induced polarization measurement. This transmitter is one of the very few that is current or voltage regulated. The current regulation allows for obtaining a current plateau during the injection and therefore allows for a more accurate measurement of the resistivity and induced polarization. With its extremely stable regulation, the TIP 6000 allows the measurement of on-time IP, dividing by two the acquisition time and multiplying by two the IP signal.
The TIP 6000 has been designed for a higher robustness and a better efficiency on the field.
This device suits to:
• Deep groundwater exploration (weathered bedrock, fault and dyke detection, groundwater table aquifers exploration)
• Mining exploration
• Deep geothermal exploration exploration
TIP 3200
The TIP 3200 is a newly developped high power transmitter that can be used together with a receiver for resistivity and induced polarization measurement. This transmitter is one of the very few that is current or voltage regulated. The current regulation allows for obtaining a current plateau during the injection and therefore allows for a more accurate measurement of the resistivity and induced polarization. With its extremely stable regulation, the TIP 3200 allows the measurement of on-time IP, dividing by two the acquisition time and multiplying by two the IP signal.
The TIP 3200 has been designed for a higher robustness, a better efficiency on the field and a light weight (17 kg).
This device suits for :
• Deep groundwater exploration (weathered bedrock, fault and dyke detection, groundwater table aquifers exploration)
• Mining exploration
• Deep geothermal exploration exploration
VIP 5000
The VIP 5000 is a powerful transmitter that can be used together with a receiver for resistivity and induced polarization measurement. This transmitter is one of the very few that is current regulated. The current regulation allows for obtaining a current plateau during the injection and therefore theoretically allows for a more accurate measurement of the chargeability.
This device suits to:
• deep groundwater exploration (weathered bedrock, fault and dyke detection, groundwater table aquifers exploration)
• deep mining exploration
VIP 10000
The VIP 10000 is the most powerful of our transmitter range that can be used together with a receiver for resistivity and induced polarization measurement. This transmitter is one of the very few that is current regulated. The current regulation allows for obtaining a current plateau during the injection and therefore theoretically allows for a more accurate measurement of the chargeability.
This device suits to:
• deep groundwater exploration (weathered bedrock, fault and dyke detection, groundwater table aquifers exploration)
• deep mining exploration
TIP 12000
The TIP 12000 is a newly developped high power transmitter that can be used together with a receiver for resistivity and induced polarization measurement. This transmitter is one of the very few that is current or voltage regulated. The current regulation allows for obtaining a current plateau during the injection and therefore allows for a more accurate measurement of the resistivity and induced polarization. With its extremely stable regulation, the TIP 12000 allows the measurement of on-time IP, dividing by two the acquisition time and multiplying by two the IP signal.
The TIP 12000 has been designed for a higher robustness and a better efficiency on the field.
This device suits to:
• Deep groundwater exploration (weathered bedrock, fault and dyke detection, groundwater table aquifers exploration)
• Mining exploration
• Deep geothermal exploration exploration
TIPIX 2200
The TIPIX 2200 is a transmitter that can be used together with a receiver for resistivity and induced polarization measurement. This entry-level instrument has been designed for a good productivity together with a strong protection again misuse. It has been proven to be robust: reliable in very cold weather or in wet environment.
This device suits to:
• deep groundwater exploration (weathered bedrock, fault and dyke detection, groundwater table aquifers exploration)
• mining exploration
TIPIX 3000
The TIPIX 3000 is a transmitter that can be used together with a receiver for resistivity and induced polarization measurement. This entry-level instrument has been designed for a good productivity together with a strong protection again misuse. It has been proven to be robust: reliable in very cold weather or in wet environment.
This device suits to:
• deep groundwater exploration (weathered bedrock, fault and dyke detection, groundwater table aquifers exploration)
• deep mining exploration
TIP One
The TIP One is purposely designed for shadow induced polarisation or Resistivity sounding investigations. The TIP One injects a regulated current or regulated voltage into the ground via a simple 12V battery.
I-FullWaver
The I-FullWaver systems were specifically developed for precise full waveform time domain induced polarisation, resistivity and self-potential measurements. Each system is fully independent; incorporating its own power source, GPS module and digital memory for up to 3 months continuous recording. This system is adapted to measure and record injected current from induced polarization and resistivity transmitters.
This device suits to:
• deep groundwater exploration (weathered bedrock, fault and dyke detection, groundwater table aquifers exploration)
• deep mining exploration
V-FullWaver
The V-FullWaver systems were specifically developed for precise full waveform time domain Induced Polarisation, Resistivity and SP measurements. Each system is fully independent; incorporating its own power source, GPS module and digital memory for up to 3 months continuous recording.
The V-FullWaver is a dual channel Induced Polarisation, Resistivity and SP receiver. Continually recording at 10ms sample rate provides a full waveform record of the voltage created by an independent transmitter. It can be synchronized on the GPS PPS signal, allowing an easy process of the signal. This device suits to:
• deep groundwater exploration (weathered bedrock, fault and dyke detection, groundwater table aquifers exploration)
• deep mining exploration
Elrec Lite
The Elrec Lite G is a 2-channel hand held induced polarisation and Resistivity receiver designed to be used with the TIPIX or VIP transmitter. The Elrec automatically synchronizes (and re-synchronizes at each new pulse) with the transmission signal, through the waveform recognition process, ensuring high measurement repeatability. This low-weight device is particularly suited for sounding and profiling measurements where the operator must move from several hundreds of meters, carrying the receiver.
This device suits to:
• deep groundwater exploration (weathered bedrock, fault and dyke detection, groundwater table aquifers exploration)
• mining exploration
Elrec Pro Std./Switch
The Elrec Pro ( 10 channels receiver) is designed for use with the TIPIX and VIP high-power transmitters’ series. The Elrec automatically synchronizes (and re-synchronizes at each new pulse) with the transmission signal, through the waveform recognition process, ensuring high measurement repeatability.
For large 2D and 3D surveys, the Elrec can be used in conjunction with the Switch Pro box(es) to increase the spread to 96 electrodes. When operating the system in this manner, complex measurement sequences can be designed and uploaded to the system via Electre II or Electre Pro software.
Alternatively, the Elrec Pro Switch allows to switch the ten channels of the receiver among 48, 72, 96, 120... electrodes. In practice, this allows to read very large combinations of electrode without having to connect/disconnect several time wires and electrodes. Acquisition time can be strongly reduced compared to receivers featuring a high number of channels but no automatic switching capability.
Complex measurement sequences can be designed and uploaded to the system via Electre Pro software.
This device suits to:
• deep groundwater exploration (weathered bedrock, fault and dyke detection, groundwater table aquifers exploration)
• mining exploration
• Environmental monitoring
Elrec Terra Std./Switch
The Elrec Terra is the very new 20 channels IP receiver designed by IRIS Insturments. It mixes recent electronics advances with the standards of IP receivers designed by IRIS Instruments since more than 30 years such as robustness, compactness, light weight and large temperature range (-20°C to 60°C).
Among the new features available on the Elrec Terra, let's discover the full waveform recording in background, the removable internal Li-ion batteries, the on-time IP acquisition mode and more...
