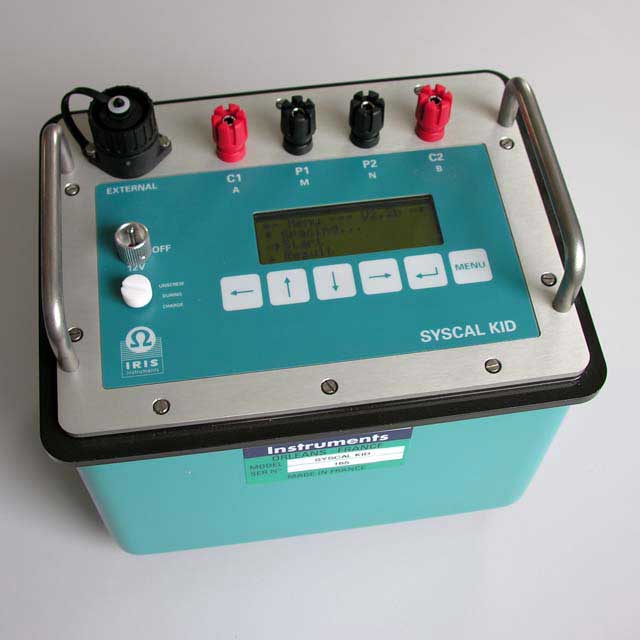

Syscal Kid

Syscal Kid

Specifically designed for very shallow, high resolution resistivity and induced polarization sounding and profiling, the Kid is the most compactof the Syscal range whilst retaining the well-known reliability and measurement accuracy of its counter parts.

Easy-to-use, automatic, field proof, with its 1 measurement channel, the Syscal Kid is ideal for archaeological, geological mapping and civil engineering and well logging applications. Its small weight (4.1 Kg) makes it particularly adapted for the manual acquisition of surface resistivity maps.

The Syscal Kid allows a direct reading of the resistivity and the chargeability (computed on 1 window). The device features 6 predefined and a user-defined arrays.

View Syscal Kid switch

Software

Download
pdf

Prosys II

Resistivity data management

Characteristics

Transmitter

Voltage:

0 - 400 Vpp

Current:

0 - 500 mA

Power:

Auto controled Internal 25W DC/DC converter

Battery:

internal battery or external 12V

Receiver

Pulse duration:

 0.5s, 1s, 2s

Channels:

1 channel

Input Impedance:

22 MOhms

Input Voltage:

2.5V , automatic gain, input protection 200V

1 µV / 0.2%

Resolution / Accuracy:



Readings:

Resistivity, Self potentiel, Induced polarisation,Quality control

Noise Rejection:

power line rejection, SP linear drift correction.

Storage:

1400 readings, stored on solid state memory

Dimensions

( L x W x H)

23x18x23cm Fiber glass casing, weather proof

weight:

4.2Kg with internal RX, TX batteries

Operating Temp.:

-10 to +50°C
